High Capacity 100 Nm3/h Portable PSA Nitrogen Generator with DN50 Inlet and ≥800 Nm3/h Output

High Purity 99.999% Portable Psa Nitrogen Gas Generator

Product Description

A PSA (Pressure Swing Adsorption) nitrogen generator is a system that uses compressed air to separate nitrogen from other gases like oxygen and carbon dioxide to produce high-purity nitrogen. It works by passing compressed air through a specialized filter containing a Carbon Molecular Sieve (CMS) that traps the other gases, allowing the nitrogen to pass through for continuous, on-site generation. PSA technology is a reliable, cost-effective method ideal for applications requiring high nitrogen purity, up to 99.999%.

Product Parameters

How Does an Industrial PSA Nitrogen Generator Work?

Pressure swing adsorption processes rely on the fact that under high pressure, gases tend to be attracted to solid surfaces, or “adsorbed”. The higher the pressure, the more gas is adsorbed; when the pressure is reduced, the adsorbed gas is released, or desorbed. PSA processes can be used to separate gases from a mixture because different gases tend to be attracted to different solid surfaces more or less strongly. If a gas mixture such as air, for example, is passed under pressure through a vessel containing an adsorbent bed of Carbon Molecular Sieve (CMS) that attracts oxygen more strongly than it does nitrogen, part or all of the oxygen will stay in the bed, and the gas coming out of the vessel will be enriched in nitrogen. When the bed reaches the end of its capacity to adsorb oxygen, it can be regenerated by reducing the pressure, thereby releasing the adsorbed oxygen. It is then ready for another cycle of producing high purity nitrogen gas.

Using two adsorbent vessels allows near-continuous production of the target gas. It also permits so-called pressure equalization, where the gas leaving the vessel being depressurized is used to partially pressurize the second vessel. This results in significant energy savings, and is common industrial practice.

Why choose GNEE series PSA Nitrogen Generator

1. Simple operation.

When the customers use nitrogen generator, they just connect air compressor--air dryer--nitrogen generator, and switch on the machine, that's all.

2. Saving cost.

Compared with buying nitrogen, nitrogen generator can save huge cost as the price of one set nigroten generator is about 1000usd only.

3. Saving electricity.

The power of our basic model nitrogen generator is 15w only, the power consumption is very small.

4. Savind space.

The size of basic model nitrogen generator is L450*W500*H770mm, which saves lots of space .

How to get a prompt quotation?

Do not hesitate to send us mail with the following data.

1) N2 flow rate: _____Nm3/hr

2) N2 purity: _____%

3) N2 discharge pressure: _____Bar

4) Voltages and Frequency: ______V/PH/HZ

5) Nitrogen Application.

6) You local Sealevel

In addition to psa nitrogen generator, we also produce VPSA Oxygen Generators,PSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in psa nitrogen Systems or other products, please feel free to send an email to info@gneeheatex.com. We will be very happy to serve you.

portable PSA nitrogen generator

high purity nitrogen gas generator

99.999% nitrogen generator with warranty

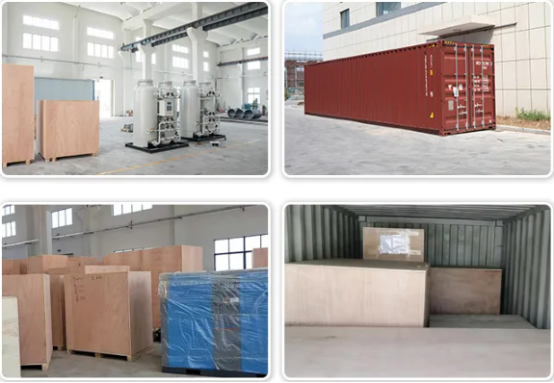

High Capacity 100 Nm3/h Portable PSA Nitrogen Generator with DN50 Inlet and ≥800 Nm3/h Output Images
